18650 li-ion electric bike 24v 36v 48v hailong battery pack
18650 21700 li-ion battery pack with hailong case for electric bike
- Nominal Voltage: 48V 36V 24V
- Nominal Capacity: 16Ah or custom
- Usable Capacity: 768Wh
18650 21700 li-ion battery pack with hailong case for electric bike
Hailong battery is made with high quality 18650/21700 lithium ion battery cell and smart BMS.Itprovides high energy density, long cycle life, and low self-discharge rate. The battery capacity can range from 200 to 1000 watt-hours, depending on the bike's intended use and the rider's preferences. A higher capacity battery will provide more power and longer range, but it will also add weight to the bike.
18650 li-ion electric bike 24v 36v 48v hailong battery pack | |
* Longer life compared to Lead-Acid battery | * Over-Charging safety protection |
* 60% more energy | * Over-Discharging safety protection |
* Up to 70% weight savings | * Over-Current safety protection |
* Portable handdle, easy to install and remove | * Short Circuit safety protection |
* Faster charging times | *High Temperature safety protection |
* 100% available capacity | *in-built safety protection BMS |
* NO FIRE, NO EXPLOSIONS | *Eco-friendly, no pollution |
Product Model | NOV-HL4816 | |
Items | Basic Parameters | |
Type | Installation | Down Tube |
Configuration | 13S5P -1865 3200mah | |
Norminal | Nominal Voltage | 48V |
Nominal Capacity | 16Ah | |
Usable Capacity | 768Wh | |

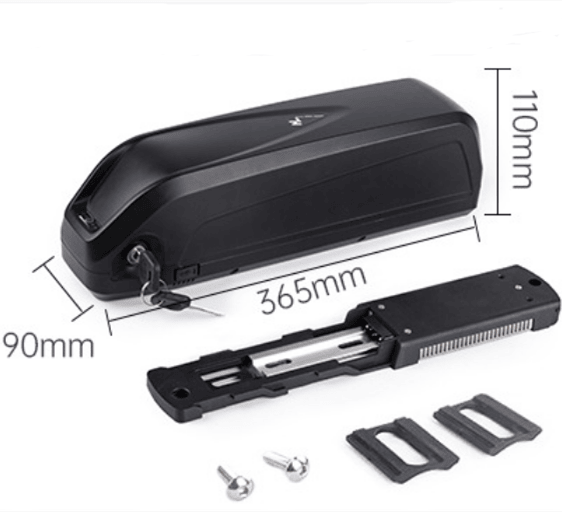

Physical | Dimension | L 368mm * W 90 mm * H 111mm |
Weight | 4.3KGs | |
Electrical | Operating Voltage Range | 39V ~ 54.6V |
Standard Charging Current | 3A | |
Standard Discharging Current | 20A | |
Max Charging Current | 5A | |
Max Discharging Current | 40A | |
Peak Discharging Current | 100A(1S) | |
Others | Charging Temperature | 0 ~ 45 ℃ |
Discharging Temperature | -20 ~ 55 ℃ | |
Design Life | 3+ year 25 ℃ | |
Cycle Life | > 1000 | |
Grade A li-ion cells 18650 /21700
Long cycle life up to 1000 cycles at 80%DOD.
PCM&BMS use the lastest American or Japanese chips.
Superb assembly process, high standard test technology, high performance safety.
No toxic, no air pollution, good for evironmental protection.
Free maintenance, easy for installation, plug&play.
Factory wholesale price&Long time warranty.
