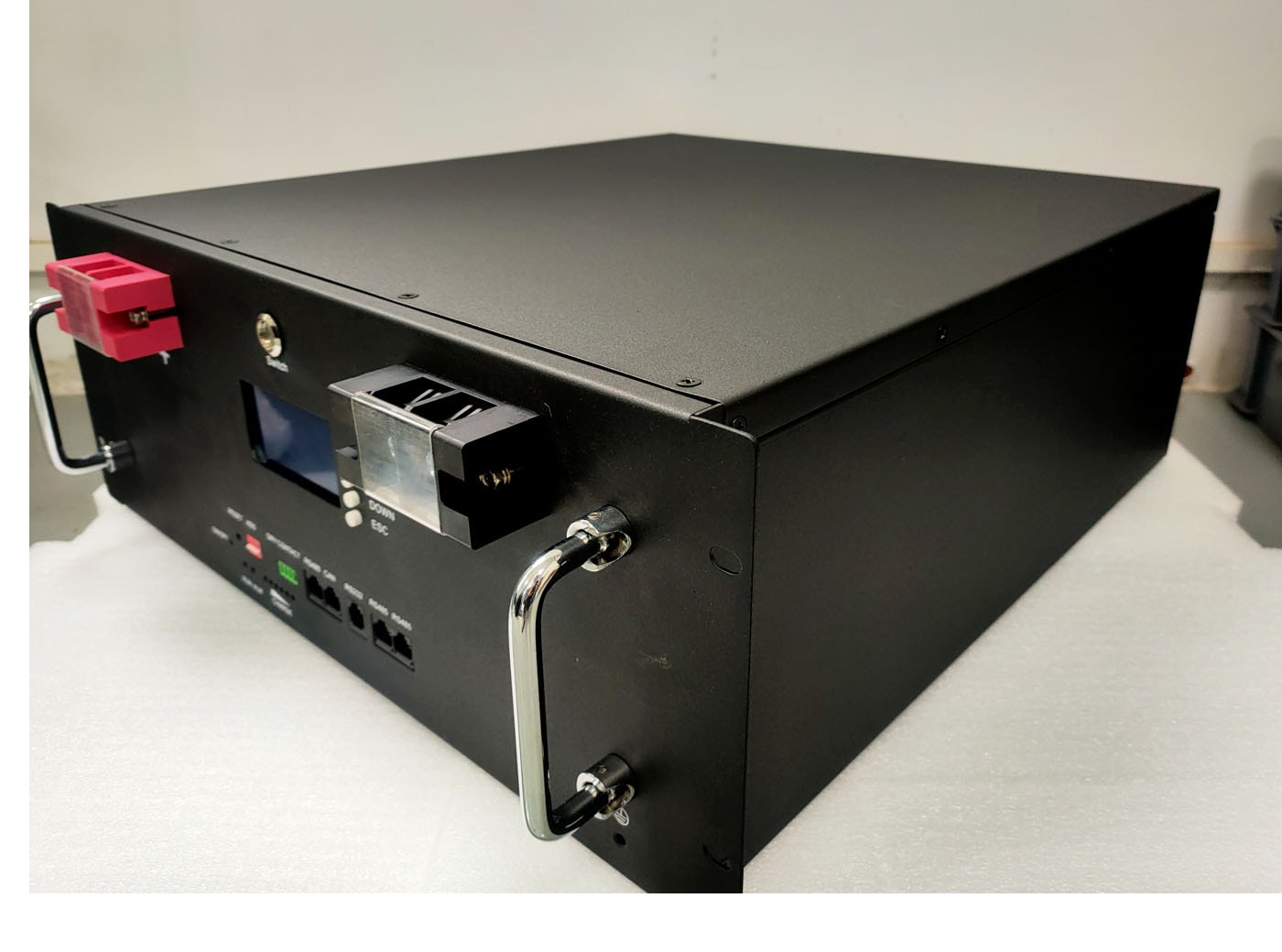

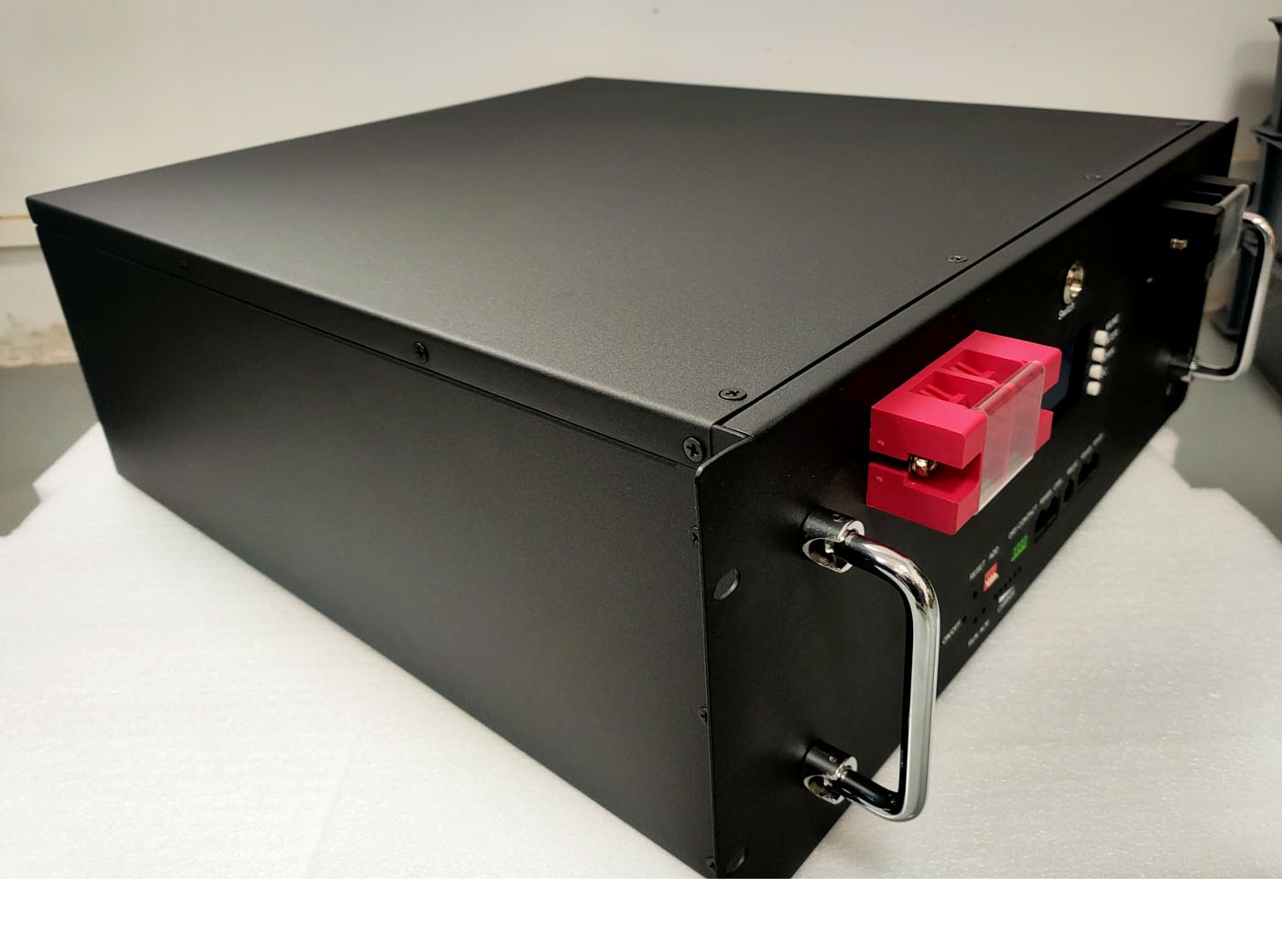

48V 2.56kwh 5.12kwh rechargeable li ion battery energy storage 4U cabinet type

48V 2.56kwh 5.12kwh rechargeable li ion battery energy storage 4U cabinet type

Household LiFePO4 battery series are in high-safety, high-reliability solar energy storage systems based on lithium iron phosphate batteries and equipped with battery management systems (BMS),
RS485+CAN+RS232 communications, compatible with many mainstream inverter protocols on the market.
The main function is to store power generated by PV and power your home appliances,provide backup power for households during blackouts, reduce electricity bills and protect the environment by consumption of solar energy.

Send message to us

Features

LFP (lithium iron phosphate) cell to ensure the highest safety. Built-In BMS protects the cell such as temperature,current,voltage,Soc,Soh.
>6000 cycles reliable performance
Max 16 Parallel OEM Series Connection
ON-LINE-TO-ONE Guidance for inverter connection

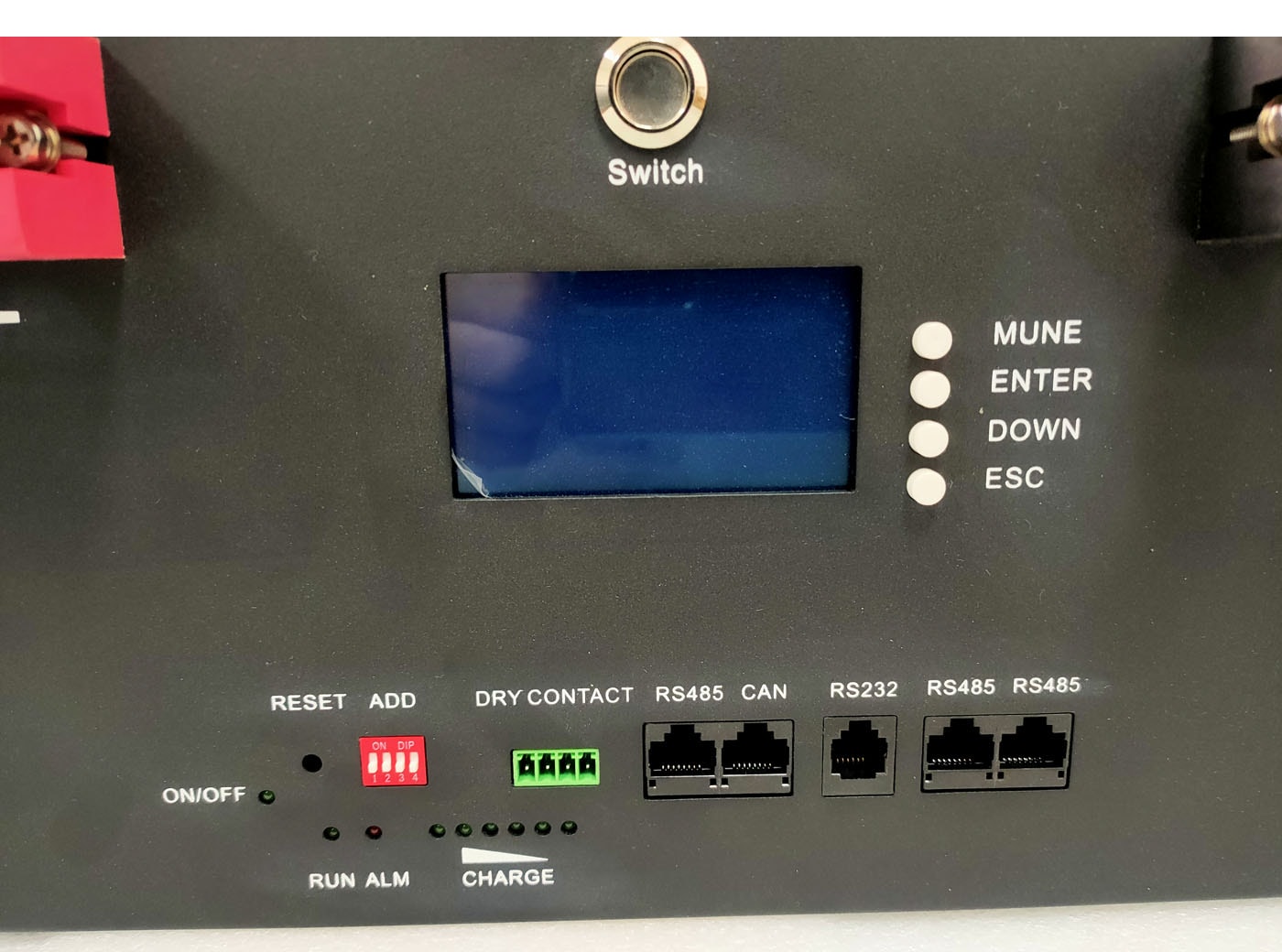

RS485 TO USB, PC monitoring: Monitor Battery capacity, voltage and batterycell status

Specifications

Item	Specification
Model	NOV-4850C	NOV-48100C	NOV-48150C	NOV-48200C
Rated capacity	50AH	100AH	150AH	200AH
Norminal voltage	51.2V	51.2V	51.2V	51.2V
Charing cut-off voltage	58.4V	58.4V	58.4V	58.4V
Discharing cut-off voltage	41.6V	41.6V	41.6V	41.6V
Power	2.56kwh	5.12kwh	7.68kwh	10.24kwh
Standard charge current	10A	20A	30A	40A
Max chargecurrent	50A	100A	150A	200A
Standard discharge current	10A	20A	30A	40A
Max dischargecurrent	50A	100A	150A	200A
Temperature	Charging @ 0+45 ℃ Discharging @-20+55 ℃ Storage@ -10+45 ℃
Communication port	RS485 /RS232/CAN
Letter of agreement	Compatible with many mainstream inverter potocols on the market
Dimension	L490W482H177mm		L626W482H270mm
Packing size	Carton：600550285mm		Casket：850550380mm
N.W	30Kgs	46Kgs	76Kgs	92Kgs
G.W	42Kgs	58Kgs	92Kgs	108Kgs

For the parameters and li ion battery energy storage 4U cabinetproducts in the table, please contact us if you have any questions, and we provide OEM and ODM services!
