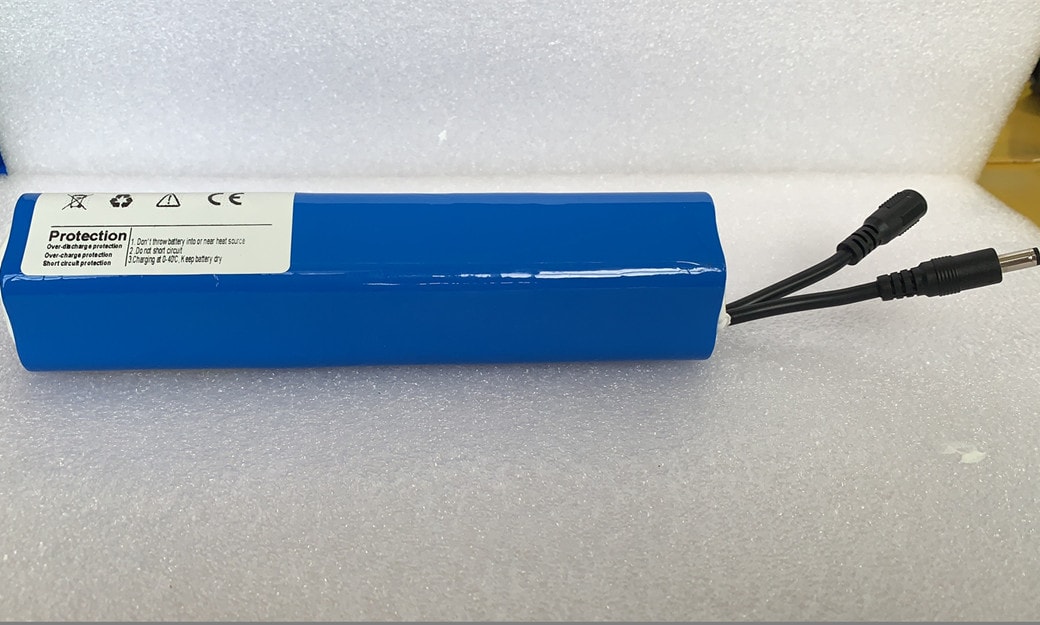

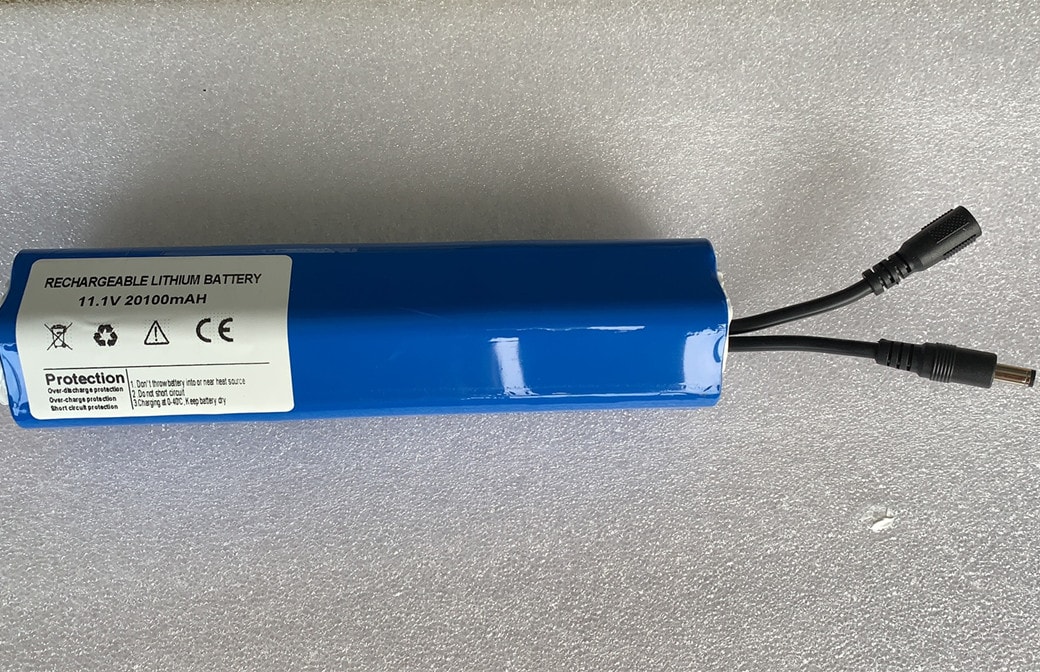

3s lithium ion battery pack LG 18650 cell 12v for led light
Novoxy 12v lithium ion battery pack is built with LG cell 18650 F1L
- Nominal Voltage: 11.1V
- Nominal Capacity: 20
- Usable Capacity: 222Wh
Novoxy 12v lithium ion battery pack is built with LG cell 18650 F1L
Novoxy 12V led light battery is made with high quality 18650 li-ion cells ,which is UL,CB,UN38.3 and MSDS certificated. All battery pack will be tested with one cycle of discharging and charging before shipping.
| Product Model | NOV-1120 | |
| Items | Basic Parameters | |
| Type | ||
| Configuration | 3S6P -18650 3350mah | |
| Norminal | Nominal Voltage | 11.1V |
| Nominal Capacity | 20Ah | |
| Usable Capacity | 222Wh | |
| Physical | Dimension | D 58 mm* H 205mm |
| Weight | 0.9KGs | |
| Electrical | Operating Voltage Range | 9V ～ 12.6V |
| Standard Charging Current | 4A | |
| Standard Discharging Current | 20A | |
| Max Charging Current | 20A | |
| Max Discharging Current | 40A | |
| Peak Discharging Current | 50A(1S) | |
| Others | Charging Temperature | 0 ～ 45 ℃ |
| Discharging Temperature | -20 ～ 55 ℃ | |
| Design Life | 3+ year 25 ℃ | |
| Cycle Life | ＞ 1000 | |
Grade A li-ion cells
Long cycle life up to 1000 cycles at 80%DOD.
PCM&BMS use the lastest American or Japanese chips.
Superb assembly process, high standard test technology, high performance safety.
No toxic, no air pollution, good for evironmental protection.
Free maintenance, easy for installation, plug&play.
Factory wholesale price&Long time warranty.
