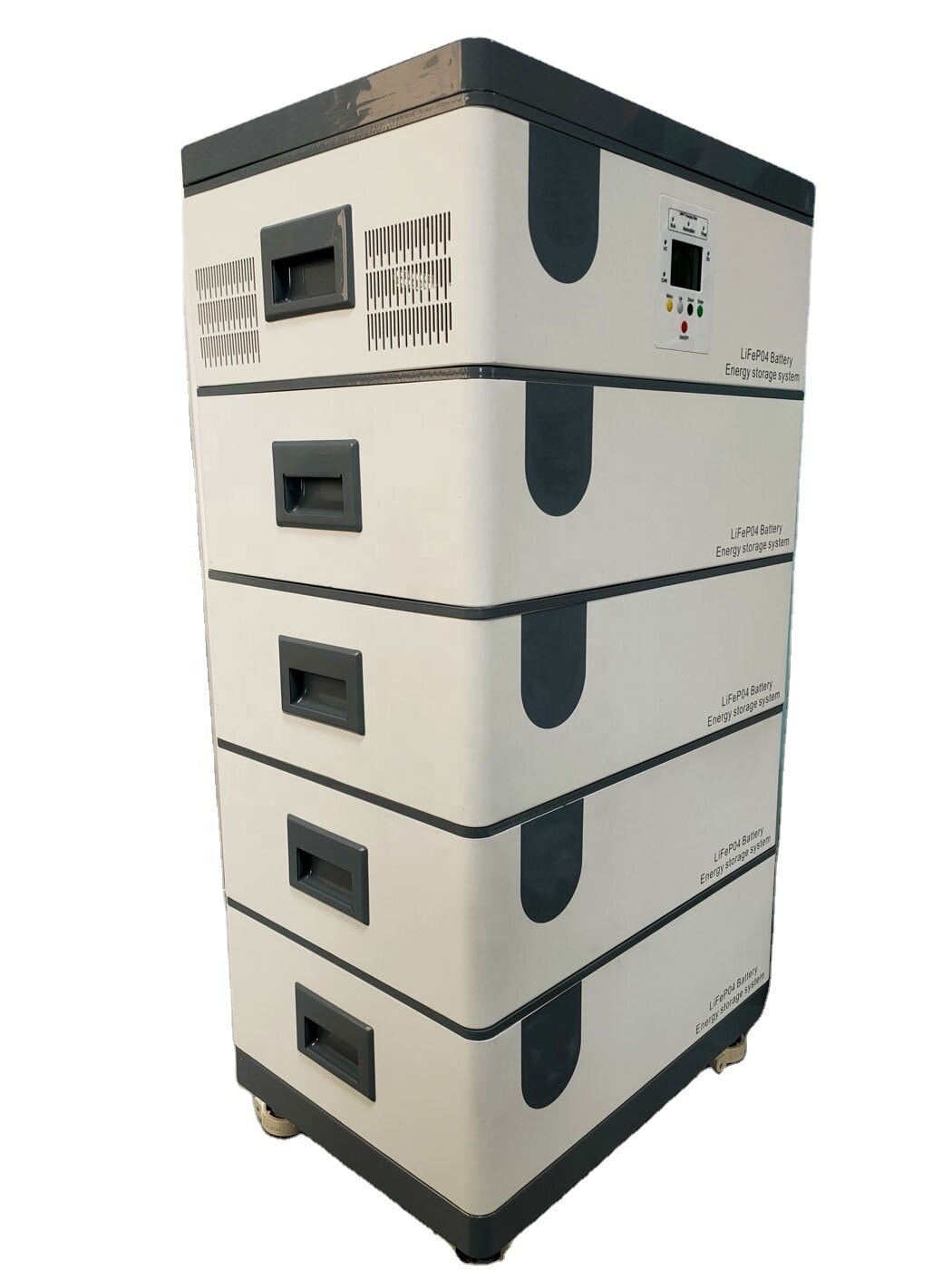

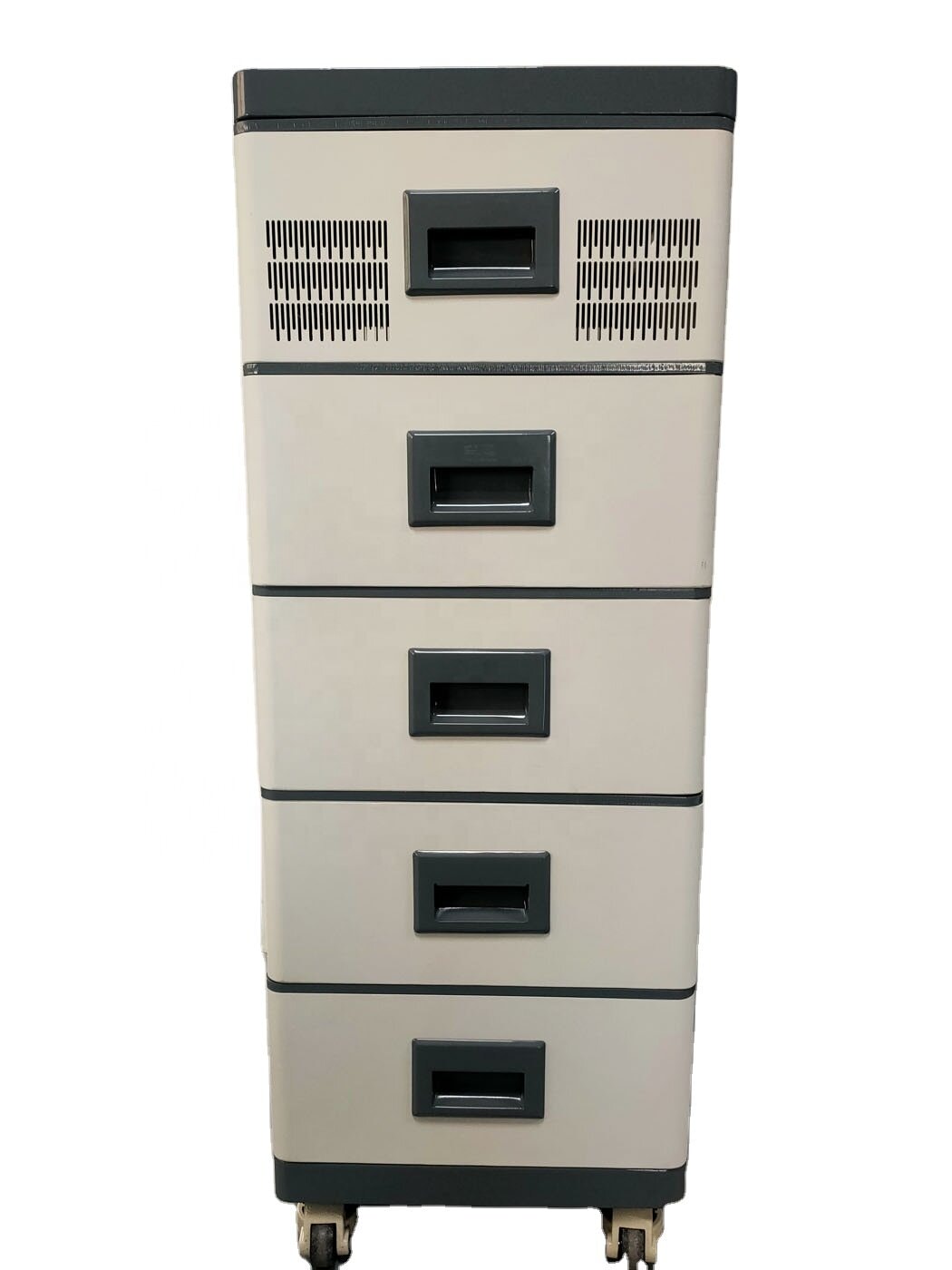

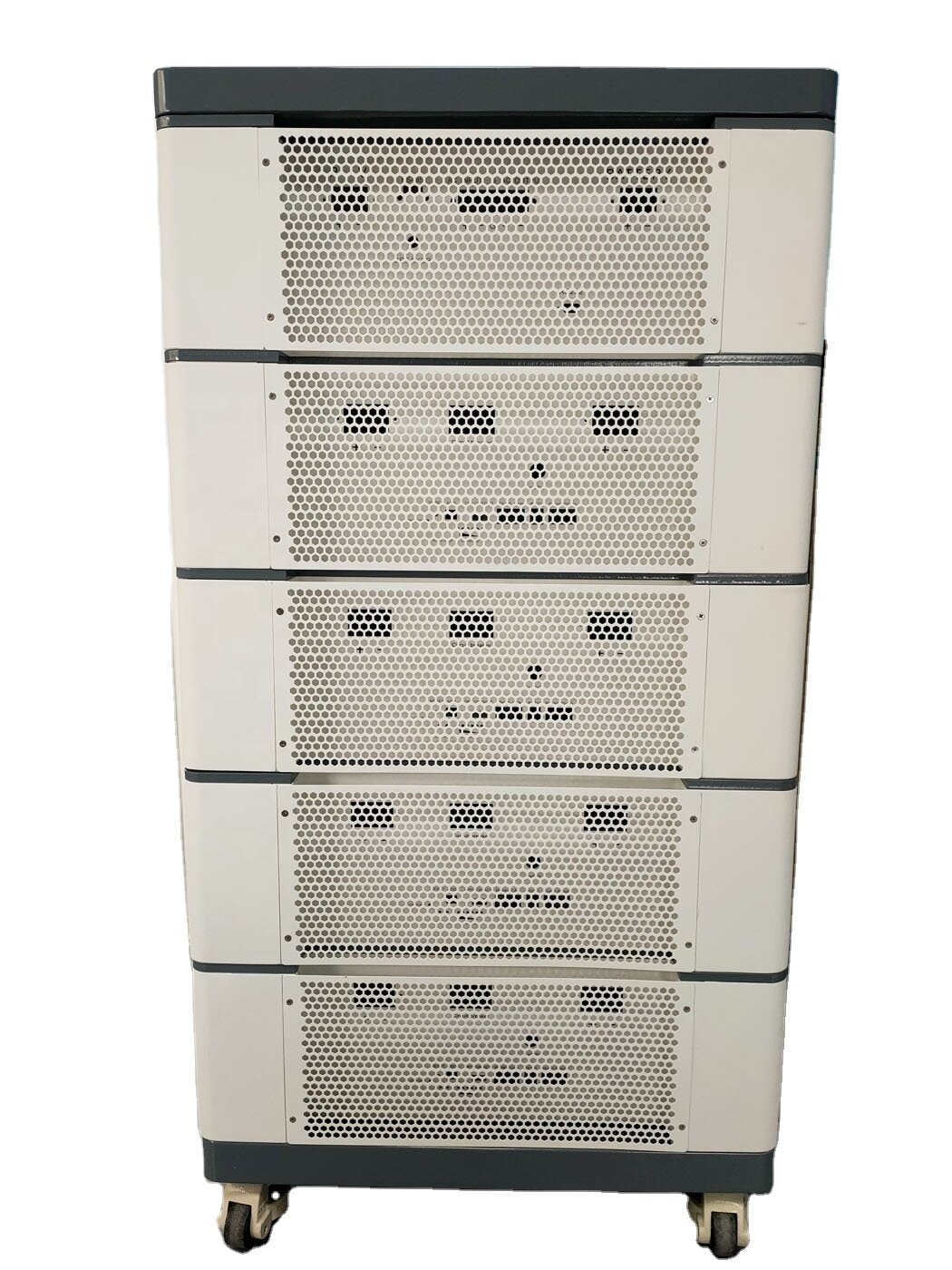

51.2V 100Ah Hybird inverter vertical energy storage system for bakcup power UPS

Hybird inverters intergrated;
Pure Sine Wave output;
Scalable battery expansion;
Monitoring software for real-time status display and control;
Multiple communcation for USB,RS232,Modbus,SNMP,GPRS and Wi-Fi;
Programmable multiple operation modes: Grid-tie,off-grid and grid-tie with backup;
Programmable supply priority for PV,battery or Grid;
Self-consumption and  Feed-back to the Grid;
Vertical thin design for the easy installation and saving space.

Send message to us

Features

Battery,Inverter,Switch build in;
5kwh batteries parallels, 3-5kw inverter;
MPPT solar panel support;
All in one design

Use stored energy to power your home during and outage
Recharge with clean energy when peired with solar
Kepp appliances running without interruption.

Specifications

Model 1set 2set 3set 4set
Overlay-Parallel 51.2V 51.2V 51.2V 51.2V
Rated capacity 100Ah 200Ah 300Ah 400Ah
Power 5.12Kwh 10.24Kwh 15.36Kwh 20.48Kwh
Charing cut-off voltage 58.4V
Discharing cut-off voltage 41.6V
Recharging Current 100A
Discharge current 100A(The current load will increase with the number of parallel)
Communication port RS485+CAN+RS232
Letter of agreement Compatible with many mainstream inverter potocols on the market
Battery stack dimensions H630*W450*H405mm (For each additional layer of battery pack
the height of the product increases by 205mm)
Packing size Casket: 720*540*300mm(Single battery)
Recharging working Temperature 0°C-45°C
Discharging working Temperature ~20°C~55°C
Storage Temperature ~10°C~45°C (charge and discharge once every month)
Load Power 5KW 10KW
DC input 48Vdc
MPPT 60-180Vdc,80A
AC input 220Vac,50Hz
AC output 220Vac,50Hz
Product Dimension 630*450*205mm
N.W 45kg 90kg 135kg 180kg
Single battery weight 48kg

For the parameters and 51.2V 100Ah Hybird inverter vertical energy storage system for bakcup power UPS products in the table, please contact us if you have any questions, and we provide OEM and ODM services!

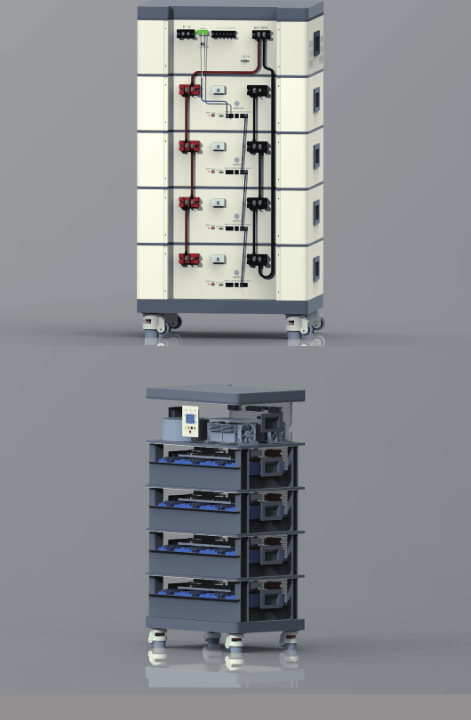

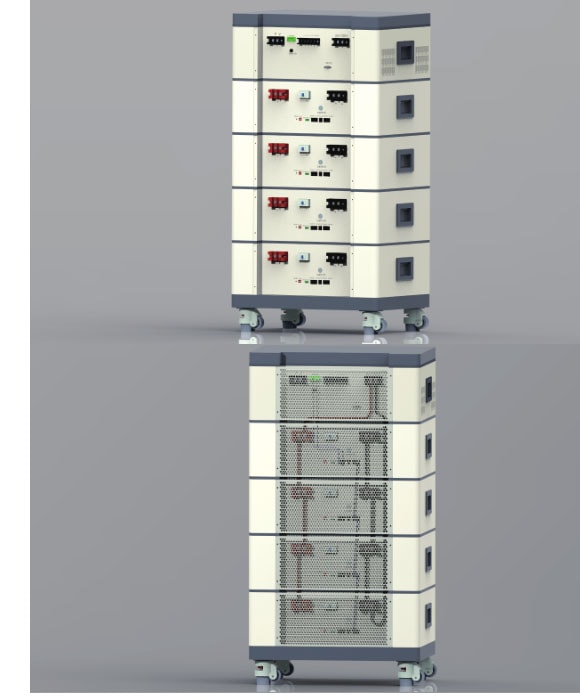

Details & applications

51.2V 100Ah Hybird inverter vertical energy storage system for bakcup power UPS51.2V 100Ah Hybird inverter vertical energy storage system for bakcup power UPS


Advantage

Grade A

Grade A LiFePO4 cells

6000 cycles

Long cycle life up to 6000 cycles at 80%DOD.

chips

PCM&BMS use the lastest American or Japanese chips.

High Standard

Superb assembly process, high standard test technology, high performance safety.

Environmental Protection

No toxic, no air pollution, good for evironmental protection.

Convenient

Free maintenance, easy for installation, plug&play.

Reasonable Price

Factory wholesale price&Long time warranty.
