6s 18650 21700 lithium ion battery pack 22.2v

Novoxy 6s 22.2v lithium batteries are made with high quality 18650 cells or 21700 cells

  • Nominal Voltage: 22.2V
  • Nominal Capacity: 2200mah 2500mah 3000mah 3500mah
  • Usable Capacity: 66.6Wh
Send message to us

Features

Novoxy 22.2V series lithium ion battery pack is made with Samsung 30Q cells. it is widely used in multipe electrionic device.

Specifications

Product Model NOV-HL223
Items Basic Parameters
Type
Configuration 3S1P 18650 30Q
Norminal Nominal Voltage 22.2V
Nominal Capacity 3000mAh
Usable Capacity 66Wh

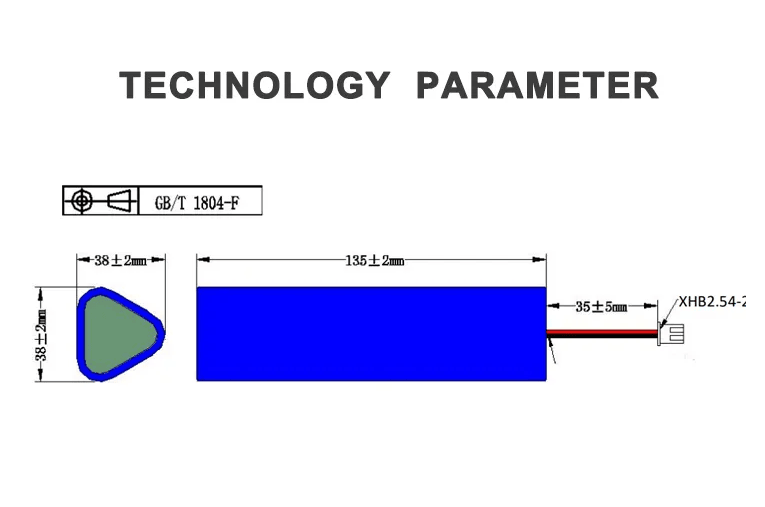

Physical Dimension L 38mm * W 38 mm * H 135mm
Weight 0.3KGs
Electrical Operating Voltage Range 18V ~ 25.2V
Standard Charging Current 1A
Standard Discharging Current 3A
Max Charging Current 3A
Max Discharging Current 10A
Peak Discharging Current 15A(1S)
Others Charging Temperature 0 ~ 45 ℃
Discharging Temperature -20 ~ 55 ℃
Design Life 3+ year 25 ℃
Cycle Life > 1000


Details & applications

Advantage

Grade A

Grade A li-ion cells

1000 cycles

Long cycle life up to 1000 cycles at 80%DOD.

chips

PCM&BMS use the lastest American or Japanese chips.

High Standard

Superb assembly process, high standard test technology, high performance safety.

Environmental Protection

No toxic, no air pollution, good for evironmental protection.

Convenient

Free maintenance, easy for installation, plug&play.

Reasonable Price

Factory wholesale price&Long time warranty.
